Description

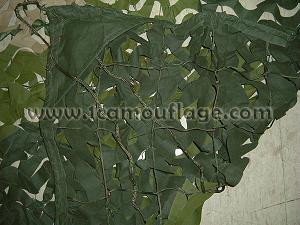

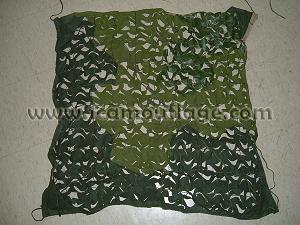

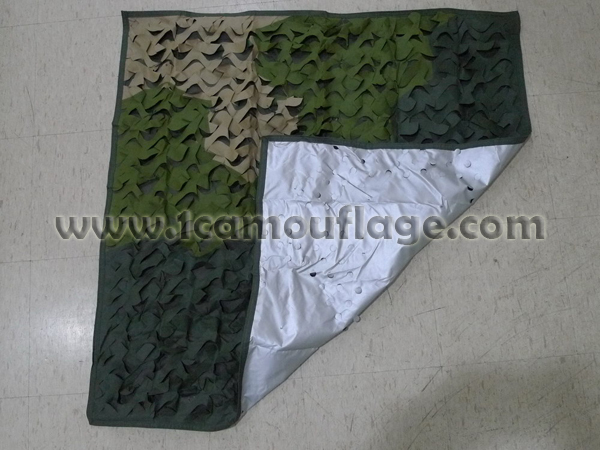

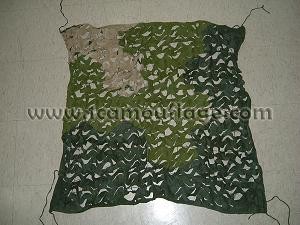

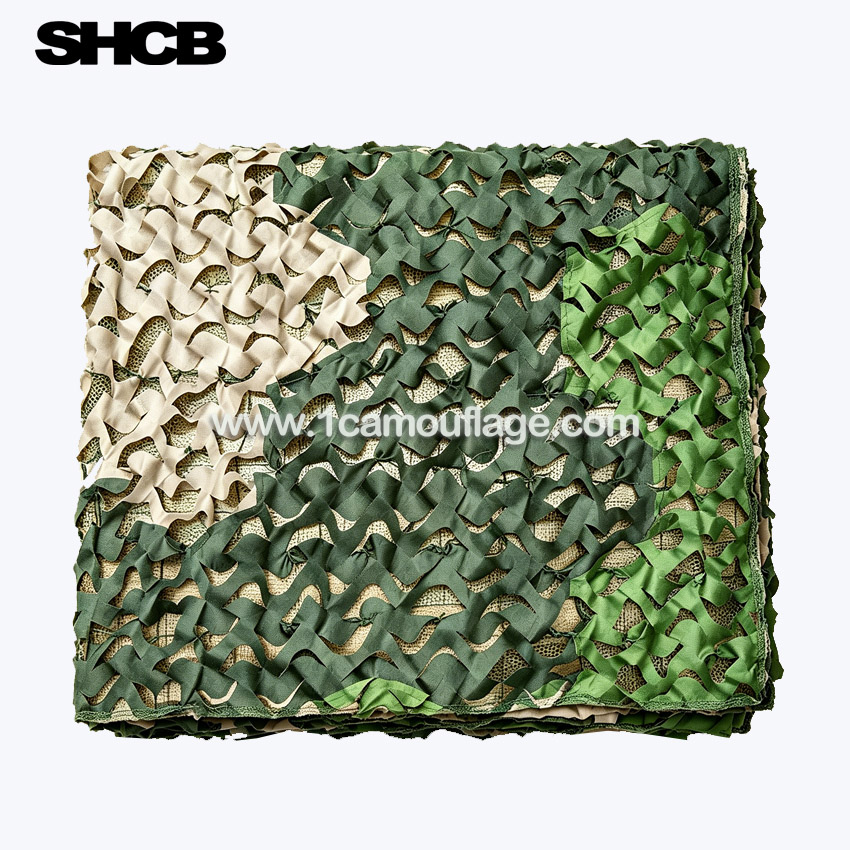

Double layer Multispectral Camo Net
TECHNICAL SPECIFICATIONS
1. Visible Lights Stealth
Working Band: 0.4~0.76μm

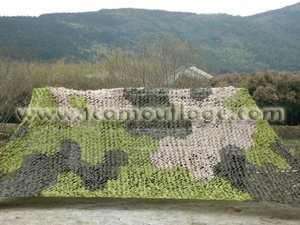

In visual range, the camouflage nets match the nature background perfectly.
2. Near Infrared Stealth
Working Band: 0.76~1.20μm
In near IR range, the camouflage nets match the nature background perfectly.
3. Thermal Infrared Stealth
Working Band: 3~5, 8~14μm
Temperature of the camouflaged target can be reduced by more than 10℃when target temperature is higher than the ambient temperature of20℃
4. Radar Stealth
Working Band: K、X、C、S、L
Reflection rate of radar wave measured in anechoic chamber is -30dB, attenuation of RCS figure of the target measured in radar test range is 10dB
Physical characteristics
Ø Adhesive force (scale) ≥ 3
Ø Rupture resistance
l Cloth ≥ 500N
l Carry rope ≥ 200N
l Connect rope ≥ 500N
l Control rope ≥ 1000N
l Colligate rope ≥ 50N
Ø The rupture resistance of the rope can be customized.
Ø Cloth specular gloss (%) ≤ 3 (60°)
Ø Fire Retardant ≤ 10 Seconds
Ø Unit weight (6.8M× 6.8Mper unit)
Ø Camo layer ≤ 200g/㎡

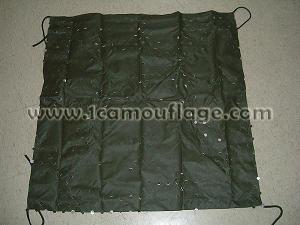

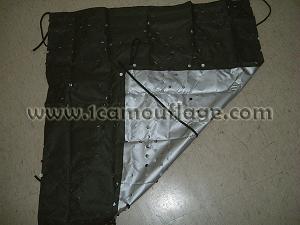

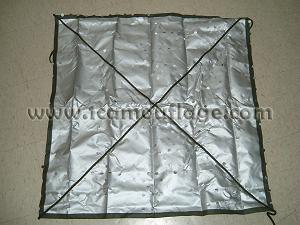

Ø Thermal layer ≤ 180g/㎡
Ø Operating life: 2 years for field
Ø Storage life: 10 years for standard warehouse.
